Product Details

Design

With details inspired by the Arts and Crafts era, our Linear Classic storage collection is available in two traditional credenza heights and multiple widths and depths. Its refined, yet durable design features dovetail joinery and handcrafted hardware. For expanded height, width and storage insert options, see our Linear Modular Custom Collection.

Made in Wisconsin

Materials

Linear is made from solid wood. The natural woods are finished with oil and wax, while the stained woods are sealed with lacquer.

Side overhang

Linear's top has an overhang of 1/2" on each side. For multiple Linear cabinets standing next to each other, or for a clean look, you can choose to eliminate the overhang of the top by selecting the option of flush sides.

Back

All Linear cabinets come with unfinished backs and the options to include holes for wire management. You can select a finished back option for a seamless look if your cabinets will float in your room.

Hardware

You can select from natural steel, stainless steel or solid wood.

Bases

You can select bases to match the wood of your cabinet, or in a natural or stainless steel. Steel bases are 6" high with a clearance of 4". Wood bases are 3" high and reduce the overall height of the dimensions listed by 3".

Buying Guide

General Tips

  • When selecting the dimensions for your custom cabinet, please consider any doorways, stairs, hallways or other tight spaces your cabinet may need to maneuver through for delivery. Download our Fit Guide for more information
  • Measure any items you wish to store in your custom cabinet to ensure they will fit within the interior dimensions. Select inserts with wire management to accommodate electronic cords and cables.
  • To see all available Linear Classic Custom Cabinet sizes, go to the Cabinet Sizes tab. To see the interior dimensions of all storage inserts, go to the Inserts tab.
  • All shelves are adjustable using removable shelf pins.

TV & Media Storage

  • Please note that most remote controls will not work through wood doors. IR remotes will work through glass doors and perforated metal doors.
  • Consider the width and height of your TV to ensure both the proportion and viewing comfort for your space.

Clothes Storage

  • Regular drawers can be upgraded to full-extension ball-bearing glides or full-extension undermount soft-close glides for an additional cost.
  • A wardrobe bar for hanging clothing is available for our Linear Modular collection.

Dining and Kitchen Storage

  • Please note that the oil-and-wax and lacquer finishes are susceptible to moisture and heat damage. Use trivets and coasters and wipe spills immediately.
  • Regular drawers can be upgraded to full-extension ball-bearing or full-extension undermount soft-close glides for an additional cost.

Office Storage

  • File drawers feature full-extension ball-bearing glides. You can upgrade to full-extension undermount soft-close glides for an additional cost.
  • Most file drawers can be configured for letter or legal files.

Cabinet Sizes

Our Linear Classic Custom cabinets are available in traditional credenza heights that work in a variety of spaces. For additional size options see our Linear Modular Custom collection.

Depth

We offer three choices for depth with our Linear Classic cabinets to accommodate a variety of uses. When choosing a depth, please keep in mind that interior dimensions will be smaller than overall measurements.

Cabinets by height and width

Linear Classic is available in two heights and a range of widths to fit your space. Please note that measurements shown are rounded up to the nearest inch. Stainless steel bases on cabinets 67" or wider will include a 5th leg positioned in the center of the base for additional support.

32h cabinets

38h cabinets

Side overhang

Linear's top has an overhang of 1/2" on each side. For multiple Linear cabinets standing next to each other, or for a clean look, you can choose to eliminate the overhang of the top by selecting the option of flush sides.

Bases

You can select bases to match the wood of your cabinet, or in a natural or stainless steel. Steel bases are 6" high with a clearance of 4". Wood bases are 3" high and reduce the overall height of the dimensions listed by 3".

Storage Options

With a variety of door, drawer and storage options, you can create a cabinet that perfectly fits your needs. When selecting your inserts, please note that the interior dimensions will differ from the overall dimensions. Not all storage options are available on all cabinet sizes.

Interior Dimensions of 32h Cabinets

See interior dimensions for 38h cabinets

Please note that interior dividers are removed for Double storage options, though shelves are included with many options.

Single Insert dimensions

Double Insert dimensions

Cabinet Storage Options for 32h cabinets

See cabinet storage options for 38h cabinets

W = wire management available

S = additional shelf available

L = locks available

D = drawer glide options available

Single Left Glass Door

adjustable wood or glass shelf
W
S
L

Single Right Glass Door

adjustable wood or glass shelf
W
S
L

Single Left Frosted Glass Door

adjustable wood or glass shelf
W
S
L

Single Right Frosted Glass Door

adjustable wood or glass shelf
W
S
L

Single Left Silver Perforated Metal Door

adjustable wood shelf
W
S
L

Single Right Silver Perforated Metal Door

adjustable wood shelf
W
S
L

Single Left Black Perforated Metal Door

adjustable wood shelf
W
S
L

Single Right Black Perforated Metal Door

adjustable wood shelf
W
S
L

Single Left Wood Door

adjustable wood shelf
W
S
L

Single Right Wood Door

adjustable wood shelf
W
S
L

Single Two File Drawer

holds letter or legal files, 16d letter only
L
D

Single Two Small Drawer with File Drawer

holds letter or legal files, 16d letter only
L
D

Single Three Drawer

L
D

Single Four Small Drawer

L
D

Single Open Space

adjustable wood or glass shelf
W
S

Double Glass Door

adjustable wood or glass shelf, interior divider removed
W
S
L

Double Frosted Glass Door

adjustable wood or glass shelf, interior divider removed
W
S
L

Double Silver Perforated Metal Door

adjustable wood shelf, interior divider removed
W
S
L

Double Black Perforated Metal Door

adjustable wood shelf, interior divider removed
W
S
L

Double Wood Door

adjustable or pull-out wood shelf, interior divider removed
W
S
L

Double Pull-out Work Surface with Two Wood Doors

adjustable wood shelf, interior divider removed
W
S
L

Double Pull-out Work Surface with Drawer and File Drawer

holds letter or legal files, 16d letter only
L
D

Double Two File Drawer

holds letter or legal files, 16d letter only
L
D

Double Three Drawer

L
D

Double Four Small Drawer

L
D

Double Open Space

adjustable wood or glass shelf, interior divider removed
W
S

Interior Dimensions of 38h Cabinets

Please note that interior walls are removed for Double storage options, though shelves are included with many options.

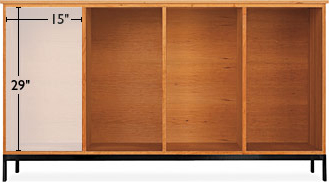

Single Insert dimensions

Double Insert dimensions

Cabinet Storage Options for 38h cabinets

W = wire management available

S = additional shelf available

L = locks available

D = drawer glide options available

Single Small Drawer, Left Glass Door

adjustable wood or glass shelf
W
S
L
D

Single Small Drawer, Right Glass Door

adjustable wood or glass shelf
W
S
L
D

Single Small Drawer, Left Frosted Glass Door

adjustable wood or glass shelf
W
S
L
D

Single Small Drawer, Right Frosted Glass Door

adjustable wood or glass shelf
W
S
L
D

Single Small Drawer, Left Silver Perforated Metal Door

adjustable wood shelf
W
S
L
D

Single Small Drawer, Right Silver Perforated Metal Door

adjustable wood shelf
W
S
L
D

Single Small Drawer, Left Black Perforated Metal Door

adjustable wood shelf
W
S
L
D

Single Small Drawer, Right Black Perforated Metal Door

adjustable wood shelf
W
S
L
D

Single Small Drawer, Left Wood Door

adjustable wood shelf
W
S
L
D

Single Small Drawer, Right Wood Door

adjustable wood shelf
W
S
L
D

Single Small Drawer with Two File Drawers

holds letter or legal files, 16d letter only
L
D

Single Small Drawer with Three Drawers

L
D

Single Three Drawer

L
D

Single Five Small Drawer

L
D

Single Open Space

adjustable wood or glass shelf
W
S

Double Two Small Drawer with Two Glass Doors

adjustable wood or glass shelf, interior divider removed
W
S
L
D

Double Two Small Drawer with Two Frosted Glass Doors

adjustable wood or glass shelf, interior divider removed
W
S
L
D

Double Two Small Drawer with Two Silver Perforated Metal Doors

adjustable wood shelf, interior divider removed
W
S
L
D

Double Two Small Drawer with Two Black Perforated Metal Doors

adjustable wood shelf, interior divider removed
W
S
L
D

Double Two Small Drawer with Two Wood Doors

adjustable or pull-out wood shelf, interior divider removed
W
S
L
D

Double Pull-out Work Surface with Two Wood Doors

adjustable wood shelf, interior divider removed
W
S
L

Double Pull-out Work Surface with Drawer and File Drawer

holds letter or legal files, 16d letter only
L
D

Double Two Small Drawer with Two File Drawers

holds letter or legal files, 16d letter only
L
D

Double Two Small Drawer with Three Drawers

L
D

Double Three Drawer

L
D

Double Open Space

adjustable wood or glass shelf
W
S

Door Details

Choose from solid wood, glass-front or metal-front doors with your choice of knobs. All door inserts include shelves that are adjustable using removable shelf pins.

Hinges

Durable, interior-mounted hinges offer a clean look on the outside of the cabinet.

Open Door Radius

All doors open 110 degrees. Interior dimensions listed include accommodation of hinges.
See interior dimensions below

Metal Doors

Perforated metal doors conceal the interior, but still allow for remote control functionality and ventilation.

Additional Shelf

One extra shelf can be ordered with each insert for an additional cost.

Shelf Spacing

Shelf holes are spaced 1 1/4" apart.

Wire Management

When wire management is selected for an insert, two holes are centered in the insert, 1 1/2" from the top and 1 1/2" from the bottom. Each wire management hole is 2 1/4" high and 9 1/2" wide.

Interior Dividers

Interior dividers are removed for Double storage options. Single left and right doors will feature a middle wall.

Door Closures

Doors feature interior latches to keep them securely closed.

Locks

Keyed locks are available on doors for an additional cost.

Pull-out Work Surface

Sturdy pull-out work surfaces feature full-extension glides and neatly tuck away to save space when not in use.

Pull-out Shelves

Pull-out shelves are concealed behind doors for accessible, yet concealed storage.

Interior Dimensions of Door Inserts for 32h Cabinets

Height Width Width
Including hinge
Depth
(note: hinges are 2" deep)
16d 20d 25d
Single Glass or Metal Door 23 3/4" 15 1/2" 13 3/4" 14" 18 1/2" 23"
Double Glass or Metal Door 23 3/4" 31 3/4" 28 1/4" 14" 18 1/2" 23"
Single Wood Door 23 3/4" 15 1/2" 13 3/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door 23 3/4" 31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door
with Pull-out Shelf
13 1/4" above shelf
7 1/4" below shelf
31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door
with Pull-out Work Surface
20" 31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"

Interior Dimensions of Door Inserts for 38h Cabinets

Height Width Width
Including hinge
Depth
(note: hinges are 2" deep)
16d 20d 25d
Top Small Drawer (all 38h cabinets) 4 1/2" 13 1/2" N/A 13" 17" 21"
Single Glass or Metal Door 23 3/4" 15 1/2" 13 3/4" 14" 18 1/2" 23"
Double Glass or Metal Door 23 3/4" 31 3/4" 28 1/4" 14" 18 1/2" 23"
Single Wood Door 23 3/4" 15 1/2" 13 3/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door 23 3/4" 31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door
with Pull-out Shelf
13 1/4" above shelf
7 1/4" below shelf
31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"
Double Wood Door
with Pull-out Work Surface
23 3/4" 31 3/4" 28 1/4" 13 1/4" 17 3/4" 22 1/4"

Drawer Details

All regular drawers come with standard 3/4 extension epoxy glides. You can upgrade to full-extension ball-bearing glides or full-extension undermount soft-close glides for an additional cost.

Drawer Construction

Drawers are constructed with smooth, unsealed Baltic birch plywood and dovetail joinery. Interior drawer dimensions vary based on the glides selected.

File Drawers

Most file drawers can accommodate letter or legal files and include full-extension ball-bearing glides at no additional cost.

Locks

A keyed lock can be added to drawers for an additional cost.

Standard Drawer Glides

3/4 extension epoxy glides are standard on all regular drawers and expose 3/4 of the drawer when fully open.

Full-extension Drawer Glides

Full-extension ball-bearing glides are recommended for heavy use.

Undermount Drawer Glides

Full-extension undermount soft-close glides cannot be seen from the side of the drawer when open. Please note that this glide will reduce the interior height of the drawer.

Interior Dimensions of Drawer Inserts for 32h Cabinets with 3/4 Extension Epoxy or Full-extension Ball-bearing Glides

Depth
Height Width 16d 20d 25d
Single Three Drawer (Three equal drawers)
Each Drawer 6 1/2" 13 1/2" 13" 17" 21"
Single Four Small Drawer (Four equal drawers)
Each Drawer 4 1/2" 13 1/2" 13" 17" 21"
Single Two File Drawer (Two equal drawers)
Each Drawer 10 1/2" 13 1/2" 13" 17" 21"
Single Two Small Drawer, File Drawer
Each Drawer 4 1/2" 13 1/2" 13" 17" 21"
File Drawer 10 1/2" 13 1/2" 13" 17" 21"
Double Three Drawer (Three equal drawers)
Each Drawer 6 1/2" 29 3/4" 13" 17" 21"
Double Four Small Drawer (Four equal drawers)
Each Drawer 4 1/2" 29 3/4" 13" 17" 21"
Double Pull-out Work Surface, Drawer, File Drawer
Drawer 6 3/4" 29 3/4" 13" 17" 21"
File Drawer 10 1/2" 29 3/4" 13" 17" 21"
Double Two File Drawer (Two equal drawers)
Each Drawer 10 1/2" 29 3/4" 13" 17" 21"

Interior Dimensions of Drawer Inserts for 32h Cabinets with Undermount Soft-close Glides

Depth
Height Width 16d 20d 25d
Single Three Drawer (Three equal drawers)
Each Drawer 6" 13 3/4" 11" 17" 20"
Single Four Small Drawer (Four equal drawers)
Each Drawer 4" 13 3/4" 11" 17" 20"
Single Two File Drawer (Two equal drawers)
Each Drawer 10" 13 3/4" 11" 17" 20"
Single Two Small Drawer, File Drawer
Each Drawer 4" 13 3/4" 11" 17" 20"
File Drawer 10" 13 3/4" 11" 17" 20"
Double Three Drawer (Three equal drawers)
Each Drawer 6" 30" 11" 17" 20"
Double Four Small Drawer (Four equal drawers)
Each Drawer 4" 30" 11" 17" 20"
Double Pull-out Work Surface, Drawer, File Drawer
Drawer 6 1/4" 30" 11" 17" 20"
File Drawer 10" 30" 11" 17" 20"
Double Two File Drawer (Two equal drawers)
Each Drawer 10" 30" 11" 17" 20"

Interior Dimensions of Drawer Inserts for 38h Cabinets with 3/4 Extension Epoxy or Full-extension Ball-bearing Glides

Depth
Height Width 16d 20d 25d
Top Small Drawer (all 38h cabinets) 4 1/2" 13 1/2" 13" 17" 21"
Single Three Drawer (Three equal drawers)
Each Drawer 8 1/2" 13 1/2" 13" 17" 21"
Single Small Drawer, Three Drawer (Top small drawer, Three equal drawers)
Each Drawer 6 1/2" 13 1/2" 13" 17" 21"
Single Five Drawer (Five equal drawers)
Each Drawer 4 1/2" 13 1/2" 13" 17" 21"
Single Small Drawer, Two File Drawer (Top small drawer, Two equal drawers)
Each File Drawer 10 1/2" 13 1/2" 13" 17" 21"
Double Three Drawer (Three equal drawers)
Each Drawer 8 1/2" 29 3/4" 13" 17" 21"
Double Two Small Drawer, Three Drawer (Two top small drawers, Three equal drawers)
Each Drawer 6 1/2" 29 3/4" 13" 17" 21"
Double Pull-out Work Surface, Drawer, File Drawer
Drawer 6 3/4" 29 3/4" 13" 17" 21"
File Drawer 10 1/2" 29 3/4" 13" 17" 21"
Double Two Small Drawer, Two File Drawers
Each File Drawer 10 1/2" 29 3/4" 13" 17" 21"

Interior Dimensions of Drawer Inserts for 38h Cabinets with Undermount Soft-close Glides

Depth
Height Width 16d 20d 25d
Top Small Drawer (all 38h cabinets) 4" 13 3/4" 11" 17" 20"
Single Three Drawer (Three equal drawers)
Each Drawer 8" 13 3/4" 11" 17" 20"
Single Small Drawer, Three Drawer (Top small drawer, Three equal drawers)
Each Drawer 6" 13 3/4" 11" 17" 20"
Single Five Small Drawer (Five equal drawers)
Each Drawer 4" 13 3/4" 11" 17" 20"
Single Small Drawer, Two File Drawer (Top small drawer, Two equal drawers)
Each File Drawer 10" 13 3/4" 11" 17" 20"
Double Three Drawer (Three equal drawers)
Each Drawer 8" 30" 11" 17" 20"
Double Two Small Drawer, Three Drawer (Two top small drawers, Three equal drawers)
Each Drawer 6" 30" 11" 17" 20"
Double Pull-out Work Surface, Drawer, File Drawer
Drawer 6 1/4" 30" 11" 17" 20"
File Drawer 10" 30" 11" 17" 20"
Double Two Small Drawer, Two File Drawers
Each File Drawer 10" 30" 11" 17" 20"

Open Space Details

Shelves can be adjusted using included shelf pins. Some sizes will feature a fixed shelf for support and stability.

Additional Shelf

One extra shelf can be ordered with each insert for an additional cost.

Shelf Spacing

Shelf holes are spaced 1 1/4" apart.

Wire Management

When wire management is selected for an insert, two holes are centered in the insert, 1 1/2" from the top and 1 1/2" from the bottom. Each wire management hole is 2 1/2" high and 9 1/2" wide.

Interior Dimensions of Open Space Inserts for 32h Cabinets

Depth
Height Width 16d 20d 25d
Single Open Space 23 3/4" 15 1/2" 14 3/4" 19 1/4" 23 3/4"
Double Open Space 23 3/4" 31 3/4" 14 3/4" 19 1/4" 23 3/4"

Interior Dimensions of Open Space Inserts for 38h Cabinets

Depth
Height Width 16d 20d 25d
Single Open Space 29 3/4" 15 1/2" 14 3/4" 19 1/4" 23 3/4"
Double Open Space 29 3/4" 31 3/4" 14 3/4" 19 1/4" 23 3/4"

We will not share, sell or trade your e-mail
