Pike Chair/Stool with Wood Legs Assembly Instructions

List of parts:

  • 1 seat frame
  • 4 legs
  • 1 spreader (stool only)
  • 12 1/4" x 40mm screws (A)
  • 12 1/4" x 16mm washers (B)
  • 4 1/4" x 32mm screws (C) (stool only)

Tools needed:

  • Phillips screwdriver

Note: Do not use power tools.

Directions:

  1. Rest seat frame upside down on a clean, soft surface so seat is level.
  2. Place legs upside down so holes on leg assembly match up with mounting bracket on seat frame.

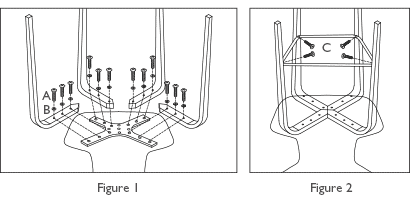

  3. For each leg, attach 3 screws (A) and 3 washers (B) to mounting bracket (Figure 1).
  4. Stool only: Attach spreader to legs using the 4 screws (C) provided (Figure 2).
Pike Chair/Stool with Wood Legs
